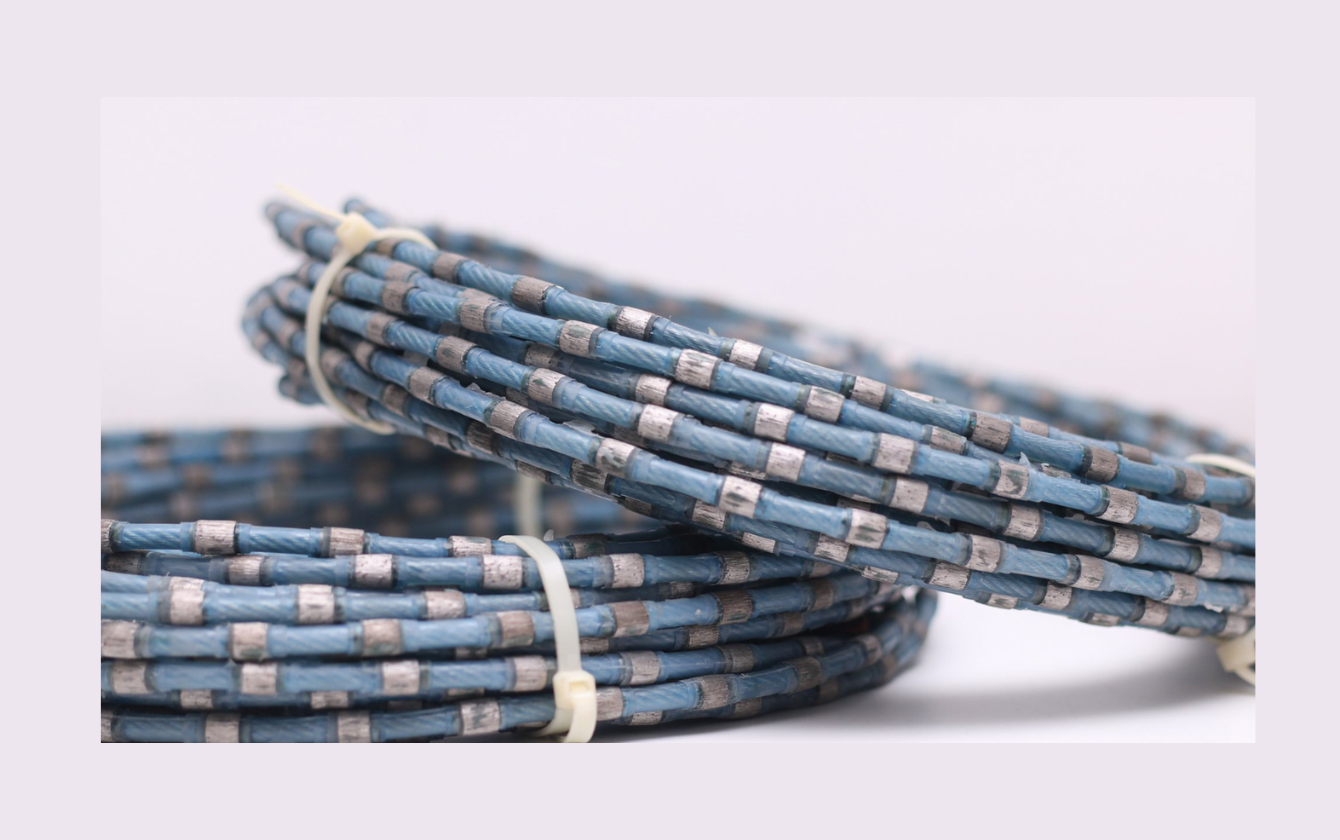

DIAMOND WIRE- MULTI

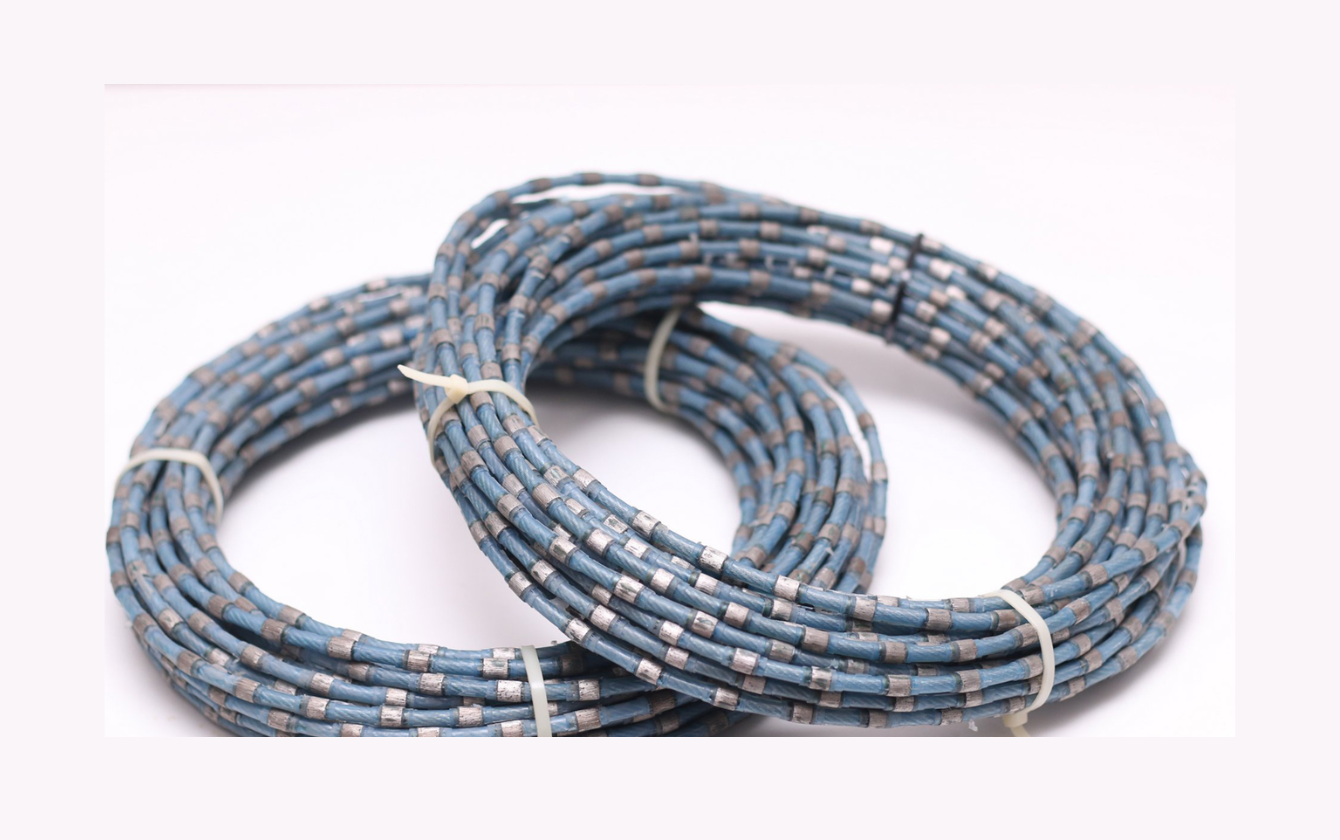

DIAMOND WIRE- MULTI - Image 2

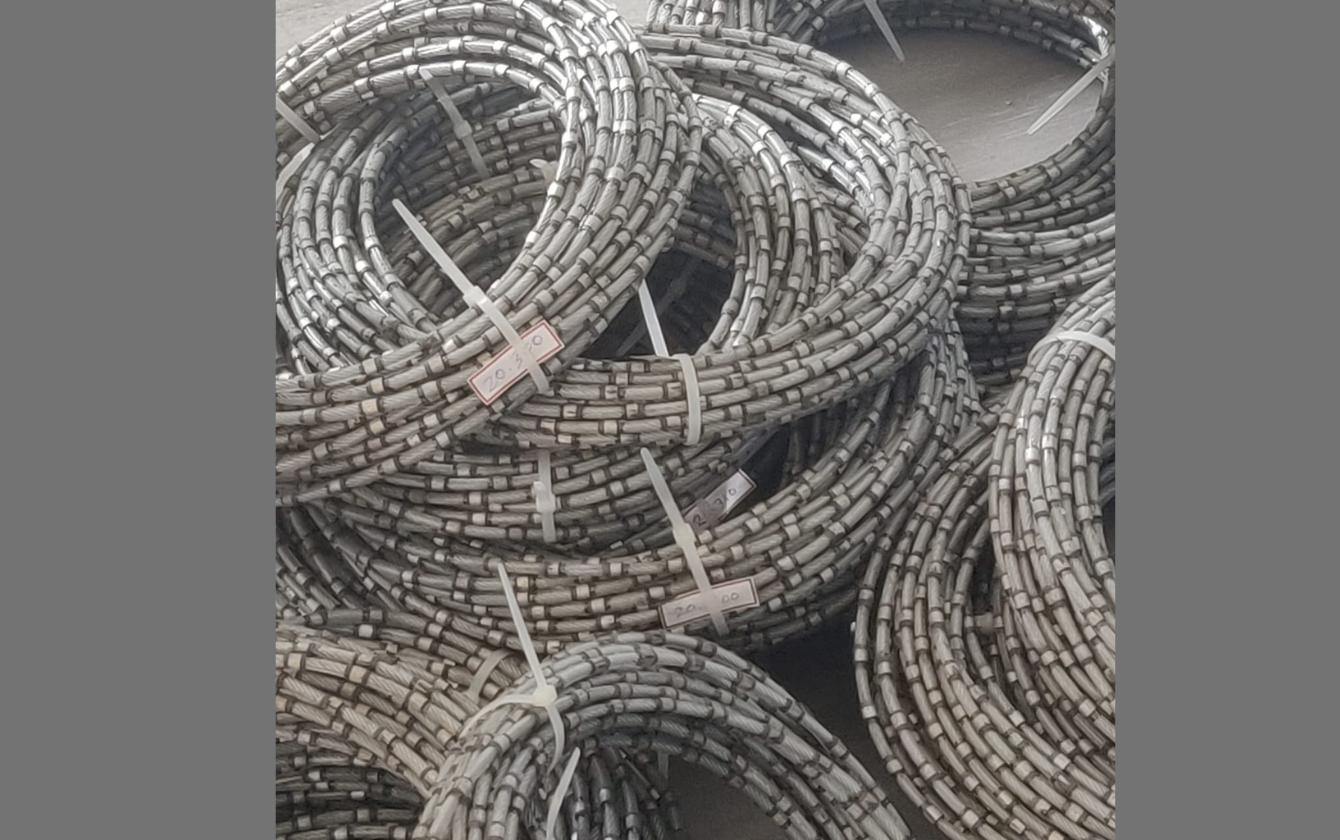

DIAMOND WIRE- MULTI - Image 3
DIAMOND WIRE- MULTI - Image 4

DIAMOND WIRE – MULTI WIRE

Harsh Diamond Tools wires can be customized and suitable as per requested for the stone by customer with endless loop. Harsh Diamond Tools wires will last long with good service and support.

TECHNICAL DATA

  • Diameter :7.3mm & 6.3mm
  • No of Beads / meter : 36-37 pcs/Mtr.
  • Fabrication : Plastic with endless  loop

For The Best Performance

  • Maintain the machine regularly by checking its rubber liners of pulleys, hydraulic tension and lubrication
  • The smallest block length should be mtr. Length
  • Water flow must be maintained with less than 30% dust particles
  • Check the condition of the wires after each cut.
  • Do not put wire on the machine with crimped joint.
  • Cut the block from diagonal point instead of straight surface.

DIAMOND WIRE- MULTI

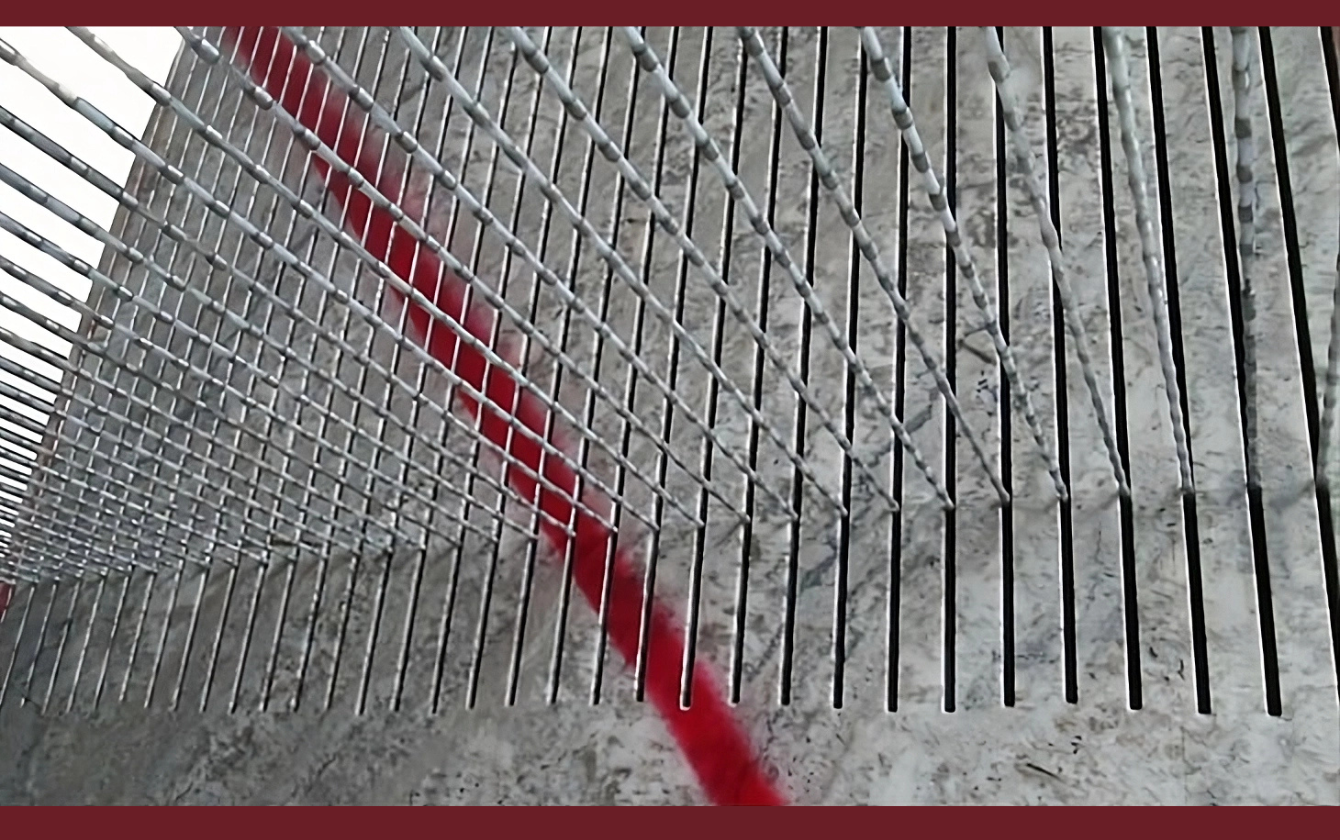

Cutting by using diamond wires installed in multiwire machines is a system that reduces working times and allows customers to cut up an entire block of stone in one go.HDT Multi Wire Cutting is Very Smooth and Sharp Cut and Long Life Recovery.

AVERAGE SAWING PARAMETER

Length in Mtr.

Wire Speed

Class 1-3 Granite Down Feed

Class 3-5 Granite Down Feed

Class 5-7 Granite Down Feed
2.5 26-30 m/s 22-25cm/hr 20-23cm/hr 16-18cm/hr
3.0 26-30 m/s 20-23cm/hr 18-21m/hr 14-16cm/hr
3.5 26-30 m/s 18-21cm/hr 15-18cm/hr 11-13cm/hr



GRANITE
Ø BEAD DIAMETER B/MT BEADS PER METER OPEN LOOP CLOSED LOOP TYPE OF MATERIAL
Ø7,3 36 ●  ●

GRANITE AND SANDSTONE
Ø7,3 37 ● ●
Ø6,3 36 ●
Ø6,3 37 ●



MARBLE
Ø BEAD DIAMETER B/MT BEADS PER METER OPEN LOOP CLOSED LOOP TYPE OF MATERIAL
Ø7,3 36 ●  ●

MARBLE
Ø7,3 37 ● ●
Ø6,3 36 ●
Ø6,3 37 ●

CONTACT US FOR MORE INQUIRY
