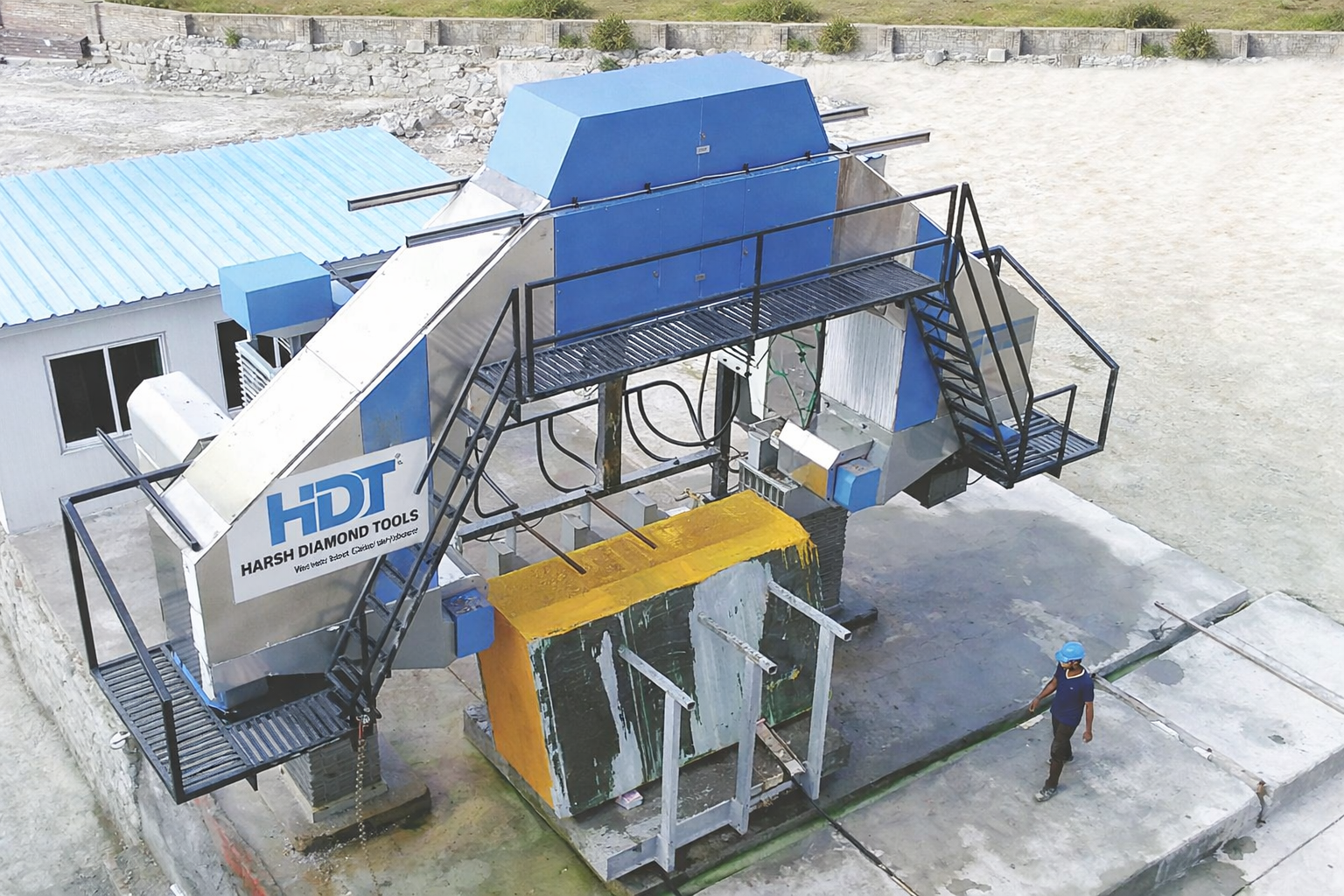

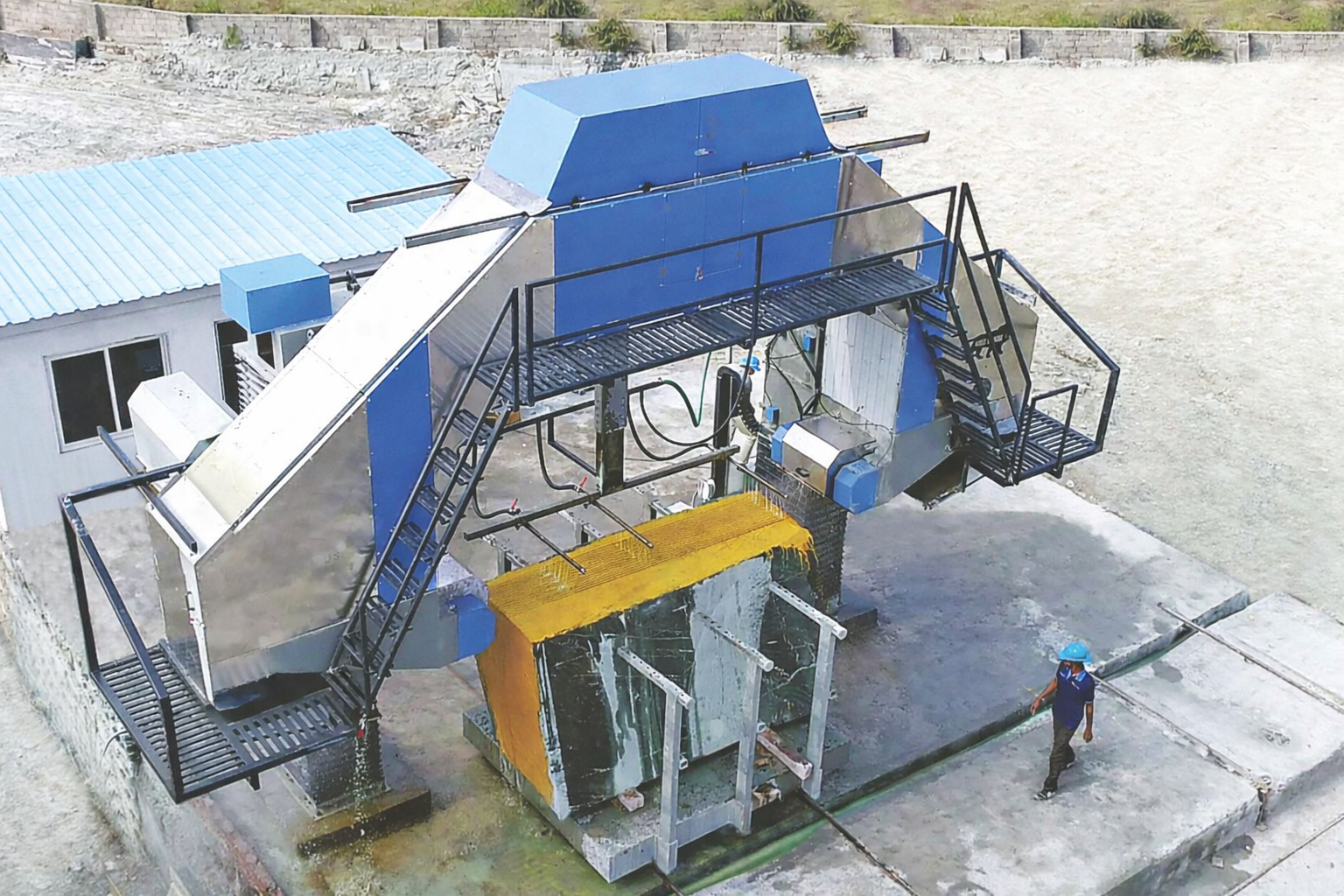

HDT-ENGENiUS MULTI Wire Machine
HDT-ENGENiUS MULTI Wire Machine - Image 2

HDT-ENGENiUS MULTI Wire Machine

Advanced Multi Wire Saw Machine for Precision Stone Cutting

The HDT-ENGENIUS Wire Machine is a high-performance multi wire saw machine designed for high-speed, high-precision cutting of granite, marble, and other natural stones. it delivers superior slab quality, higher yield, and optimized production efficiency. Built for modern stone-processing facilities, HDT-ENGENiUS Wire Machine combines advanced engineering with decades of industry expertise.

Service Overview

We focus on delivering precision tools for the stone industry. Our mission is to provide high-quality cutting solutions to enhance productivity and quality for our clients. We leverage years of experience and technical expertise to ensure our products meet industry standards.

CONTACT US – FOR MORE INQUIRY

HDT-ENGENiUS MULTI Wire Machine

Advanced Multi Wire Saw Machine for Precision Stone Cutting

Service Details

Our services provide advanced solutions for stone cutting, ensuring the best results every time. We specialize in high-performance machines that help achieve optimal output without compromising on quality.

Our Offerings

We are dedicated to providing cutting-edge machinery designed for professional use in stone processing. Our goal is to empower businesses with tools that maximize efficiency and output.

TECHNICAL SPECIFICATIONS
Machine Models HDT-ENGENiUS 20 HDT-ENGENiUS 34 HDT-ENGENiUS 46 HDT-ENGENiUS 56
Number of Wires 20 34 46 56
Application Diamond Wire Dia: 5.3mm, Dia 6.3mm Dia: 5.3mm, Dia 6.3mm Dia: 5.3mm, Dia 6.3mm Dia: 5.3mm, Dia 6.3mm
Max . Block Size Can be Cut L 3.6  X 2.1 Mtr. L 3.6  X 2.1 Mtr. L 3.6  X 2.1 Mtr. L 3.6  X 2.1 Mtr.
Thickness Cutting 2cm, 3cm 2cm, 3cm 2cm, 3cm 2cm, 3cm
Installed Power 100kw 135kw 175kw 212kw
Motorised Trolley Size L 3 X B 2.6 Mtr. L 3 X B 2.6 Mtr. L 3 X B 2.6 Mtr. L 3 X B 2.6 Mtr.
Wire Tensioning System Hyraulic Hyraulic Hyraulic Hyraulic
Wire Speed Variable Variable Variable Variable
Control System PLC PLC PLC PLC
Overall Dimension L 11 X B 5 X H 9 Mtr. L 11 X B 7.5 X H 9 Mtr. L 11 X B 8 X H 9 Mtr. Variable
Gross Weight 28 Ton 42 Ton 53 Ton …
CONTROL SYSTEM
HMI 15″
SERVO SET FEEDING
DRIVE MAIN MOTOR
DRIVE TROLLEY MOTOR
WIRELESS REMOTE 8 OUTPUT
PANEL BOX FABRICATED
SPECIFICATION 2400 X 600 X2000 MM

Reviews

There are no reviews yet.

Be the first to review “HDT-ENGENiUS MULTI Wire Machine”

Your email address will not be published. Required fields are marked *

Related products

  • DIAMOND WIRE-STATIONARY Read more

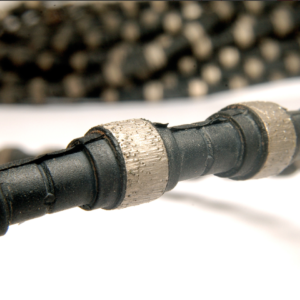

    DIAMOND WIRE-STATIONARY
