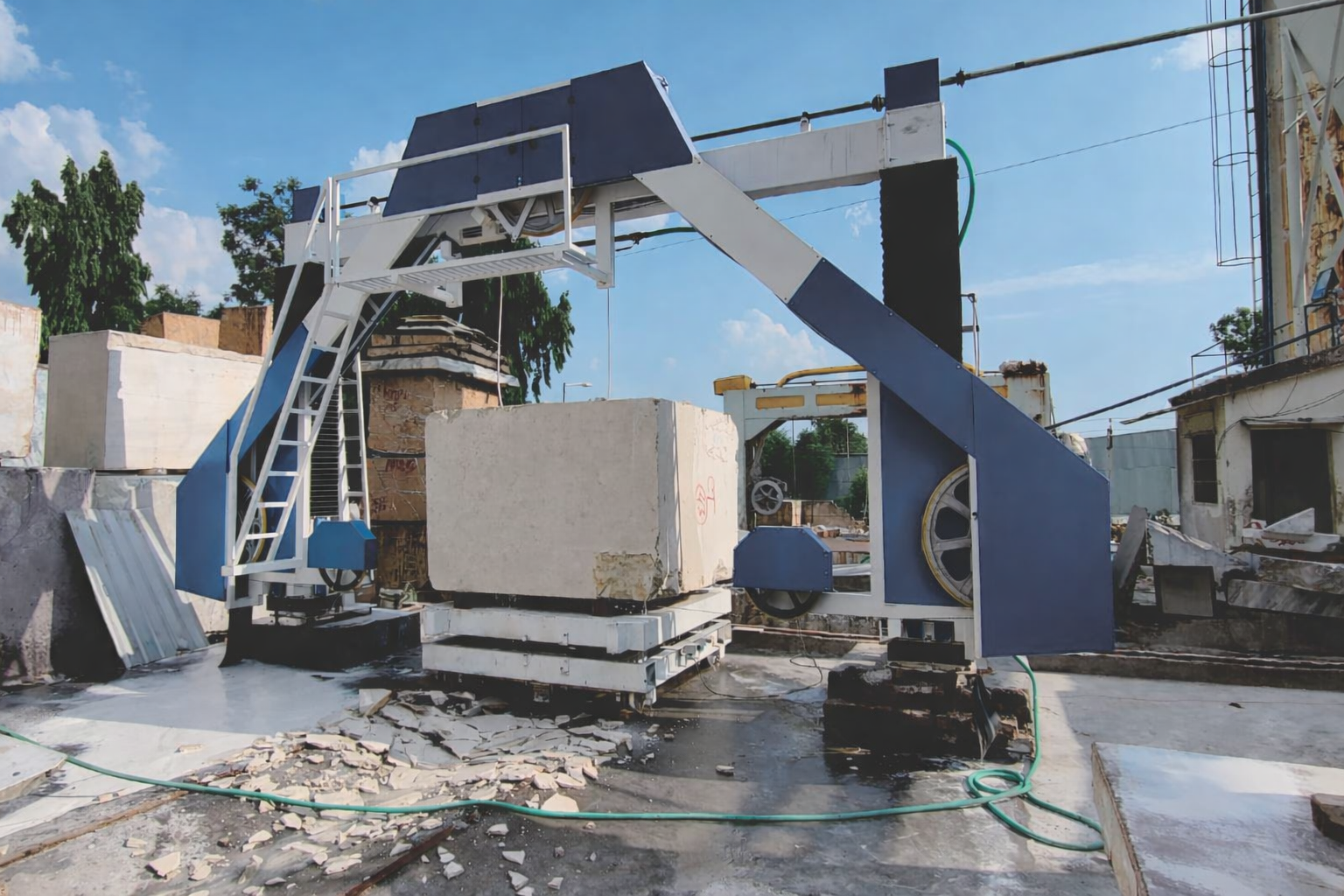

HDT-ENGENIUS Dressing Machine
Application and Concept
High-Speed accurate trimming and slabbing ( i.e monuments or thick size slab) of Granite/Marble block for quick production by wire dia 6.3/11.5 mm dia. Diamond wire in ENGENiUS-PRO model whereas only accurate trimming in ENGENiUS-LITE model.
| TECHNICAL SPECIFICATIONS | ||
| Machine Models | ENGENiUS PRO | ENGENiUS PRO |
| Number of Wires | 1 | 1 |
| Application Diamond Wire | Dia: 11.5/6.3 | Dia : 11.5 |
| Max . Block Size Can be Cut | L 3.6 X 2.1 Mtr. | L 3.6 X 2.1 Mtr. |
| Thickness Cutting | Trimming, Slabbing | Trimming |
| Installed Power | 21Kw | 20Kw |
| Motorised Trolley Size | L 2 X W 2 Mtr. | L 2 X W 2 Mtr. |
| Wire Tensioning System | Hyraulic | Pneumatic |
| Wire Speed | Variable | Fix |
| Control System | PLC | Static |
| Overall Dimension | L 11 X 1.5 X 1.7 Mtr. | L 11 X 1.5 X 1.7 Mtr. |
| Gross Weight | 7 Ton | 6 Ton |
Structure
Fabricated study steel dynamic structure design concept which will holds four big flywheels and guide rollers which is fitted in the housing and bearing. This specific structure designed to run diamond wire smoothly.
Controls
Function of the machine i.e. up and down with variable speed, spindle rotation with fixed speed, hydraulic system, gear motors, water pump controlled by panel.
