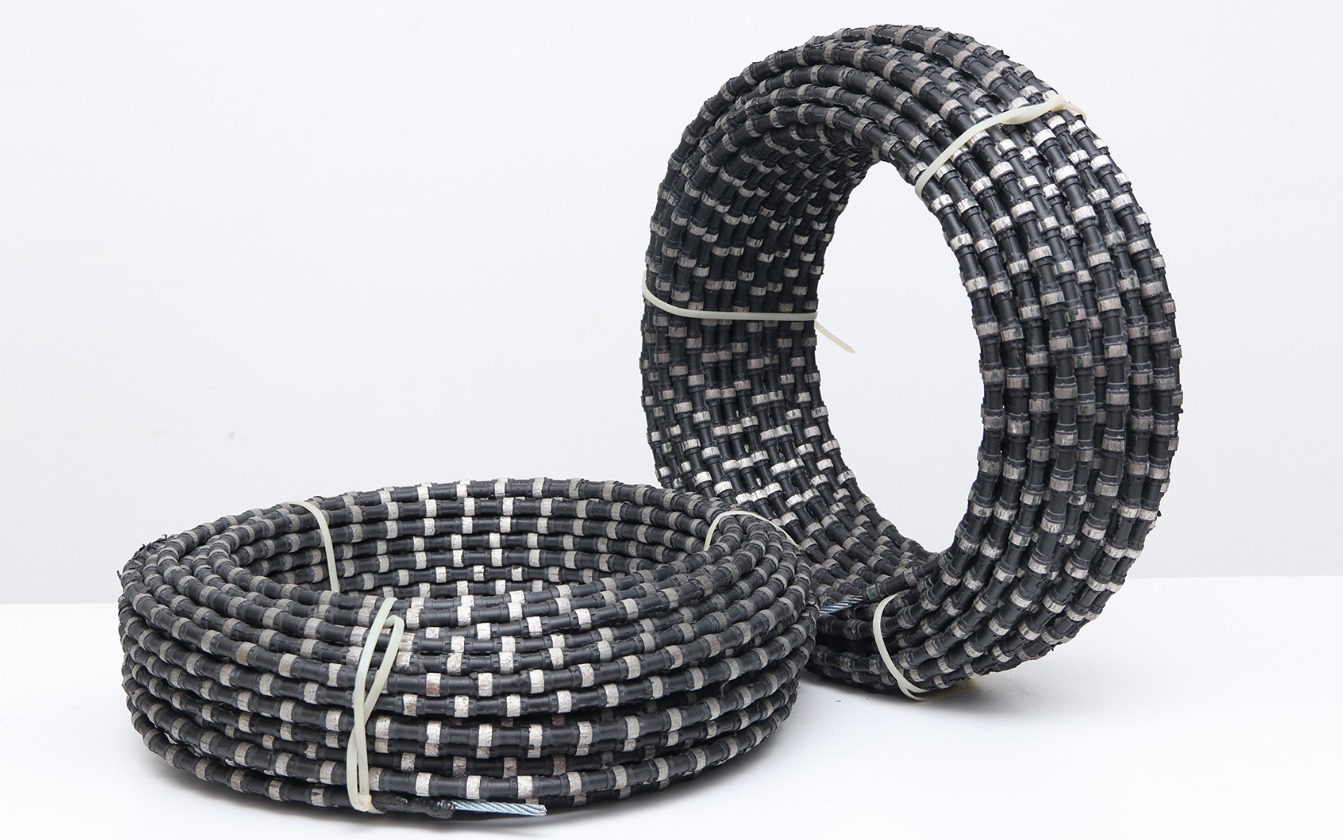

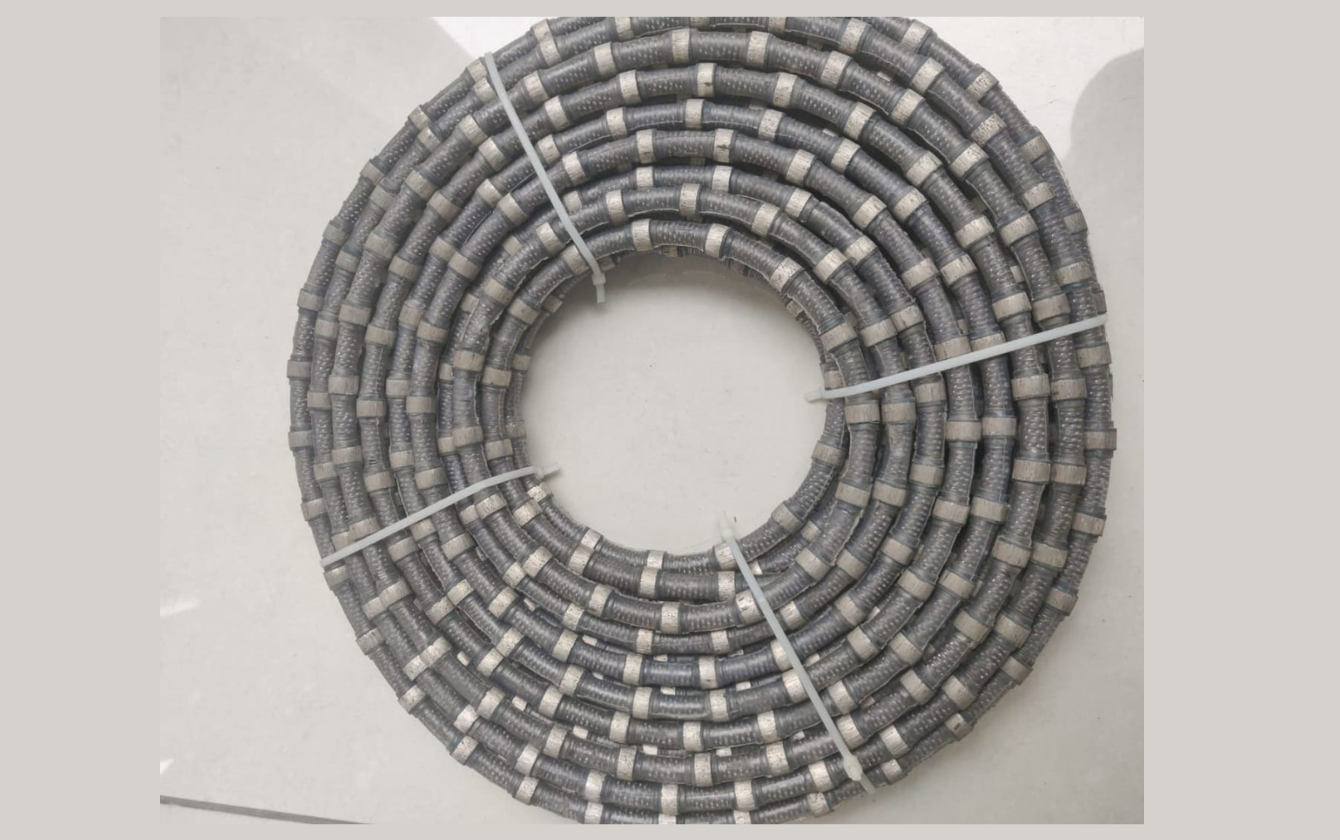

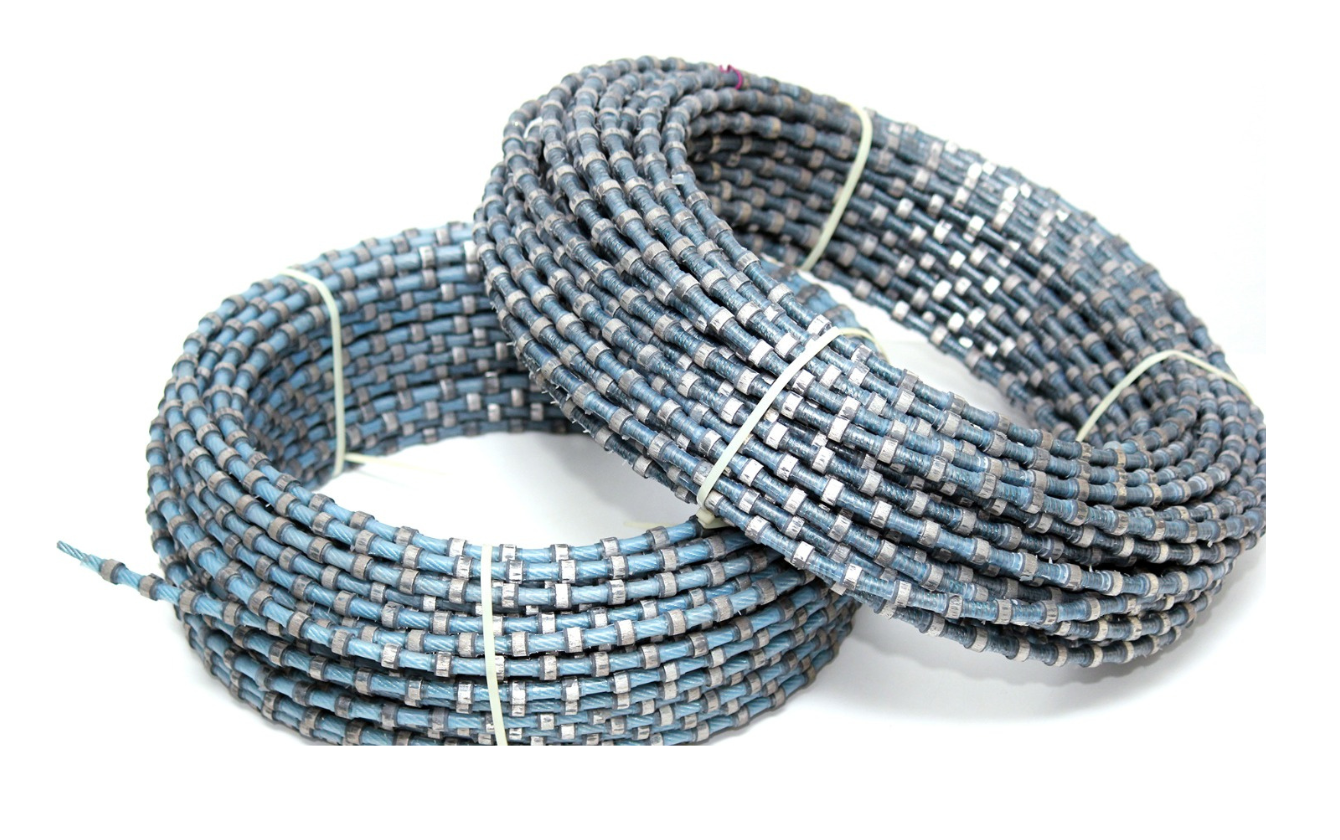

DIAMOND WIRE – QUARRY

Harsh Diamond Tools wires are available for various Granite and Sandstone which is used with traditional assembly with spring and washer. We offer different type of beads for abrasive-hard and soft-medium hard Granite at very ease cutting speed with good life. Harsh Diamond Tools normally cater its product to export market.

TECHNICAL DATA

- Diameter : 11.5/12 mm
- No. of Beads :36-40 /mtr.
- Assembly : Spring, Washer, and Lock Joint

For The Best Performance

Use Good Quality Assembly
Do not run wire without water in any case
Run the wire at slow speed initially
Select good machine with inverter
Change assembly time to time

CONTACT US FOR MORE INQUIRY

Description

This kind of wire is suitable for All cutting banks of any size effectively and safely and slabbing them into blocks. HDT Wire Good Performance and Good Long Life Recovery.

WIRESAW ROPE: GRANITE
Ø BEAD DIAMETER	B/MT BEADS PER METER	CHARACTERISTICS	TYPE OF MATERIAL
Ø11,50	36	PLASTIC COATED	GRANITE
Ø11,50	37	PLASTIC COATED
Ø11,50	40	PLASTIC COATED

WIRESAW ROPE: SANDSTONE & MARBLE
Ø BEAD DIAMETER	B/MT BEADS PER METER	CHARACTERISTICS	TYPE OF MATERIAL
Ø11,50	33	PLASTIC COATED	SANDSTONE & MARBLE
Ø11,50	36	PLASTIC COATED
Ø11,50	40	PLASTIC COATED

BEADS:- SINTERED BEADS FOR GRANITE AND SANDSTONE

SINTERED BEADS: GRANITE
Ø BEAD DIAMETER	B/MT BEADS PER METER	CHARACTERISTICS	TYPE OF MATERIAL
Ø11,5/12	36-40	SPRING SPACERS	GRANITE
			GRANITE

SINTERED BEADS: SANDSTONE
Ø BEAD DIAMETER	B/MT BEADS PER METER	CHARACTERISTICS	TYPE OF MATERIAL
Ø11,5	36-37	SPRING SPACERS	SANDSTONE
